SKU: 364215376135191

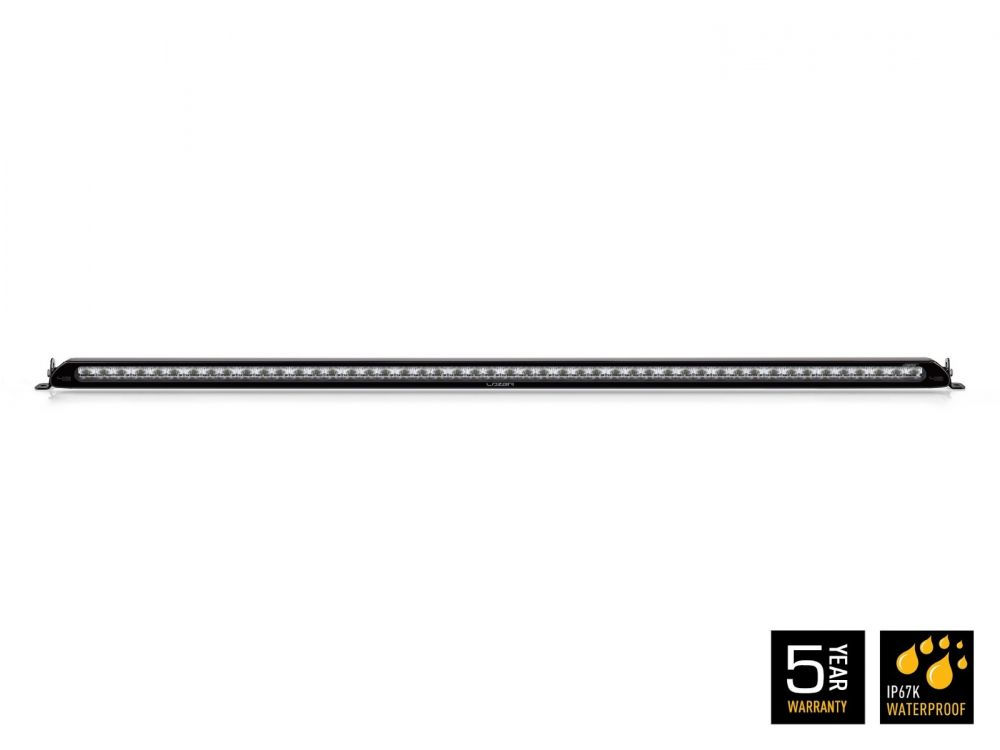

Lazer - Linear-48

£834.00Price
Color: Black
Out of Stock

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.



What's included:
- x1 Linear-48 LED Lamp
- x1 Anti-Theft Side Mount (1127k)
- x1 Installation Instructions



Features:

Highly efficient 3W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions, or roof mounting

Sleek, low profile design eases installation

Aero design virtually eliminates wind noise on roof installations

Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP67 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed and manufactured in UK

  • Voltage Range (DC) 10-32V
    LED Life 50,000 hours
    Weight 4 kg
    HIGH BEAM FUNCTION
    Total Luminous Flux 18000 Lm
    Total Driver 'FOV' Flux † 12816 Lm
    Colour Temperature 5000K
    Number of High Output LEDs 48
    Power Consumption 168 Watts
    Current Draw (at 14.4V) 11.7 Amps
    Start-up Time * 100ms
    CERTIFICATION
    High Beam N/A
    ECE Reference N/A
    DIMENSIONS
    Width 1282 mm
    Depth 62 mm
    Height 40 mm
    PHOTOMETRIC DATA
    Horizontal Beam Angle 32 degrees
    0.25 lx Line 1101 metres
    0.5 lx Line 779 metres
    1 lx Line 550 metres
    3 lx Line 318 metres
